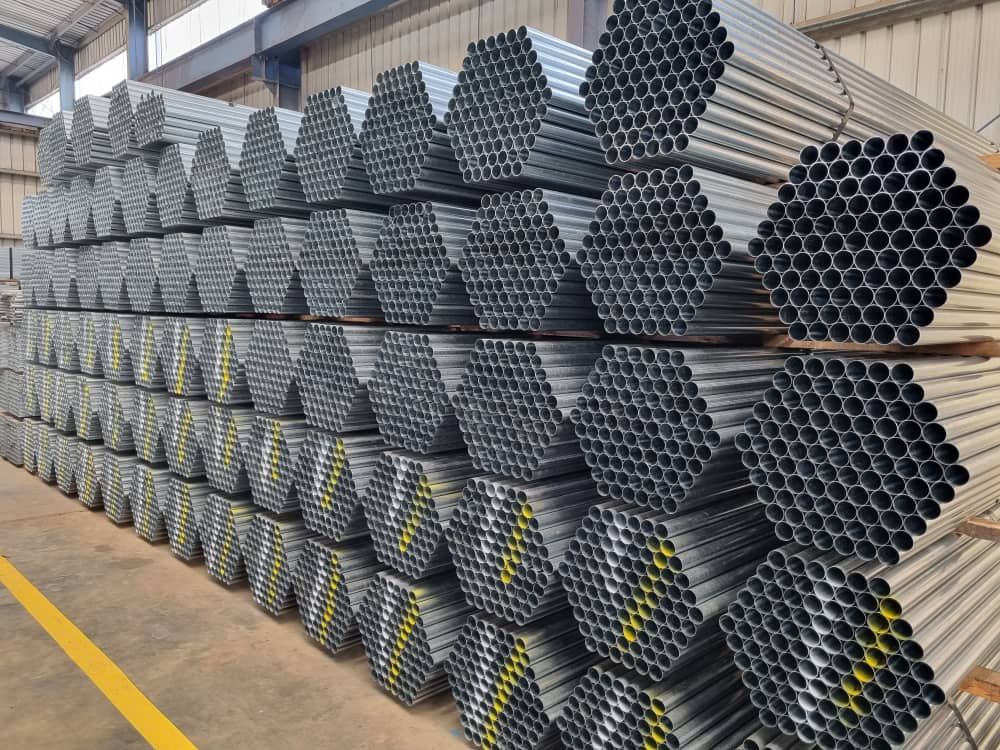

MS & galvanised
Produced from high-quality hot rolled and cold rolled coils on state-of-the-art tube mills with high-frequency induction welding, conforming to JIS G 3444.
JIS G 3444
Standard
5.50 m
Standard length
0.50–2.80
Wall thickness (mm)
3
Shapes

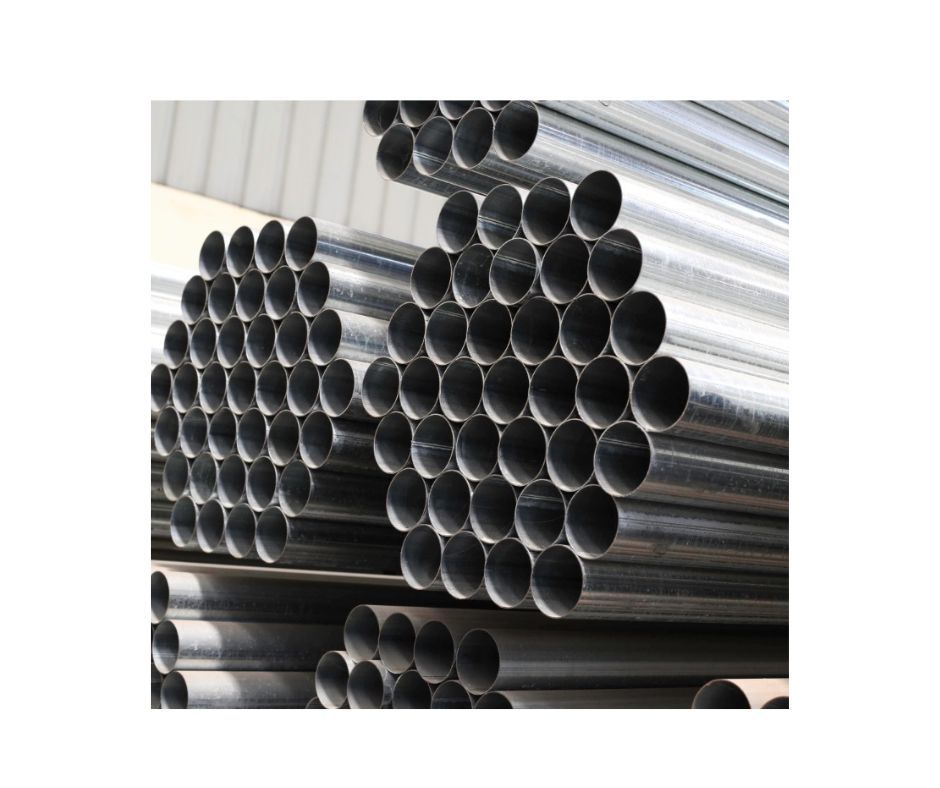

01 — Round pipes
Pipes that deliver on strength and durability. Made from high-quality steel for exceptional performance in industrial and construction settings, in a range of sizes and thicknesses.

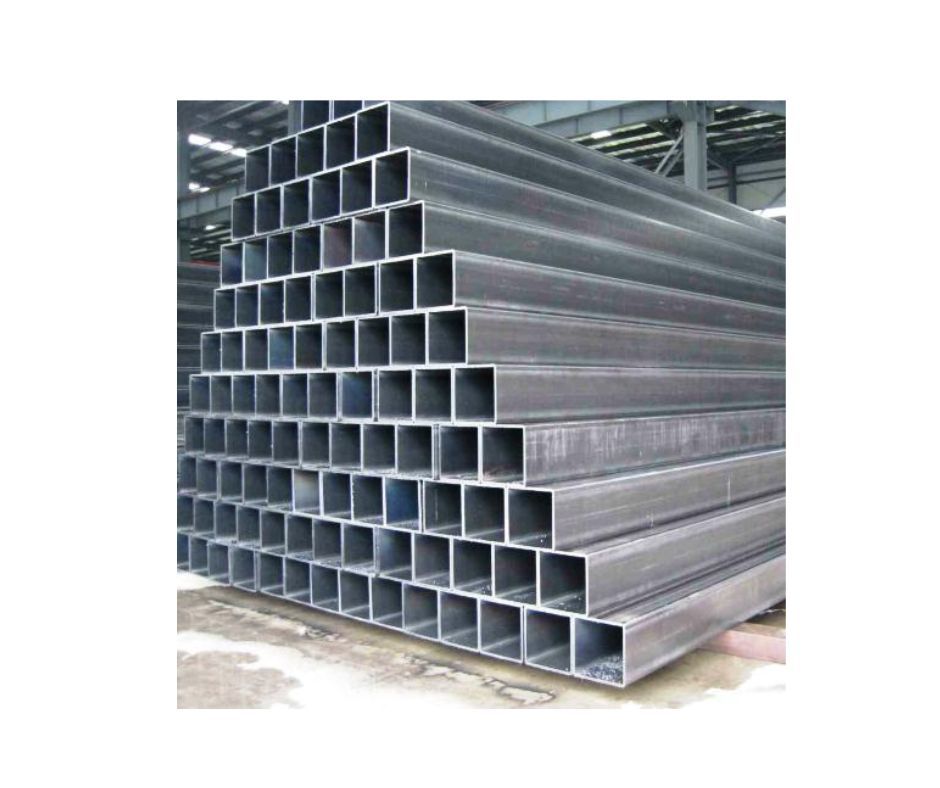

02 — Square tubes
Upgrade your next construction project. Durable steel with excellent strength, perfect for manufacturing and construction — from furniture to burglar-proof grills.

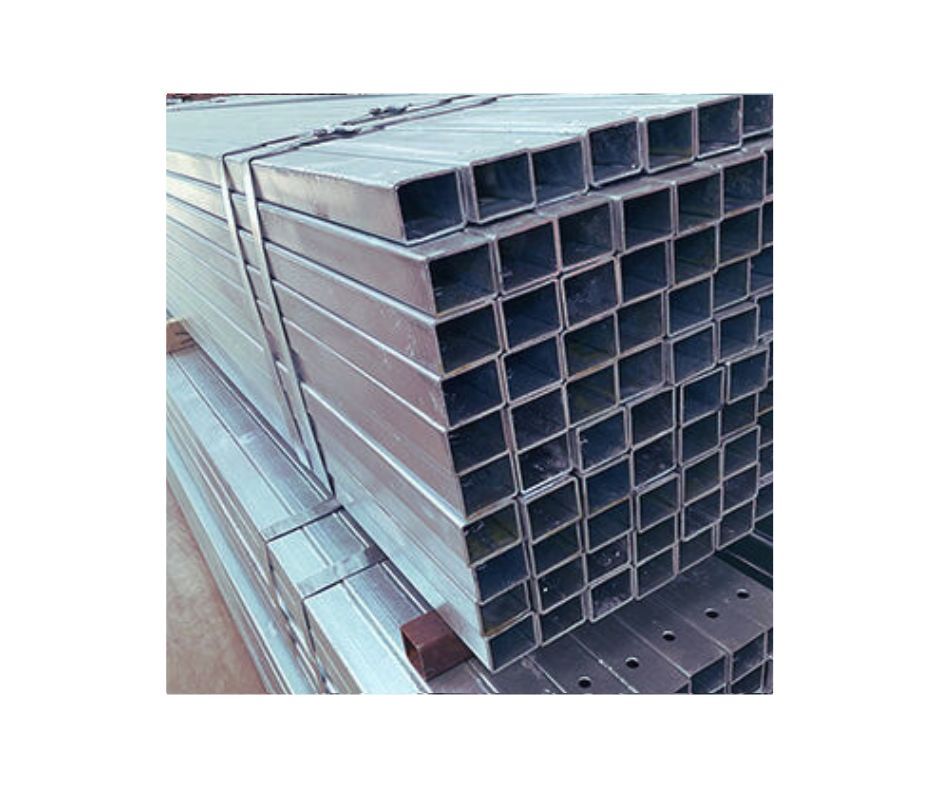

03 — Rectangular tubes
Versatile and strong. Superior strength and durability for a range of applications — 60 × 40 and 80 × 40 mm sizes are used for purlins and rafters on light structures.
Specifications
d = diameter · D = side · t = wall thickness
|
Size (mm OD)
|
Thickness (mm)
|
Length (m)
|
Wt / pc (kg)
|
Pcs / MT
|
Pcs / bundle
|
|---|---|---|---|---|---|
|
20
|
0.60
|
5.50
|
1.7
|
603
|
547
|
|
0.80
|
5.50
|
2.2
|
452
|
||
|
0.90
|
5.50
|
2.5
|
402
|
||
|
22
|
0.60
|
5.50
|
1.9
|
536
|
469
|
|
0.80
|
5.50
|
2.5
|
402
|
||
|
0.90
|
5.50
|
2.8
|
357
|
||
|
25
|
0.60
|
5.50
|
2.1
|
483
|
374
|
|
0.80
|
5.50
|
2.8
|
362
|
||
|
0.90
|
5.50
|
3.1
|
322
|
||
|
1.05
|
5.50
|
3.6
|
276
|
||
|
32
|
0.60
|
5.50
|
2.6
|
386
|
217
|
|
0.80
|
5.50
|
3.5
|
290
|
||
|
0.90
|
5.50
|
3.9
|
257
|
||
|
1.05
|
5.50
|
4.5
|
221
|
||
|
1.30
|
5.50
|
5.6
|
178
|
||
|
1.50
|
5.50
|
6.5
|
154
|
||
|
38
|
0.60
|
5.50
|
3.1
|
322
|
127
|
|
0.80
|
5.50
|
4.1
|
241
|
||
|
0.90
|
5.50
|
4.7
|
214
|
||
|
1.05
|
5.50
|
5.4
|
184
|
||
|
1.30
|
5.50
|
6.7
|
148
|
||
|
1.50
|
5.50
|
7.8
|
129
|
||
|
1.70
|
5.50
|
8.8
|
114
|
||
|
48
|
0.90
|
5.50
|
5.9
|
168
|
91
|
|
1.05
|
5.50
|
6.9
|
144
|
||
|
1.30
|
5.50
|
8.6
|
116
|
||
|
1.50
|
5.50
|
9.9
|
101
|
||
|
1.70
|
5.50
|
11.2
|
89
|
||
|
2.20
|
5.50
|
14.5
|
69
|
||
|
63
|
1.05
|
5.50
|
9.1
|
110
|
61
|
|
1.30
|
5.50
|
11.2
|
89
|
||
|
1.50
|
5.50
|
13.0
|
77
|
||
|
1.70
|
5.50
|
14.7
|
68
|
||
|
2.20
|
5.50
|
19.0
|
53
|
||
|
2.80
|
5.50
|
24.2
|
41
|
||
|
76
|
1.30
|
5.50
|
13.5
|
74
|
37
|
|
1.50
|
5.50
|
15.5
|
64
|
||
|
1.70
|
5.50
|
17.6
|
57
|
||
|
2.20
|
5.50
|
22.8
|
44
|
||
|
2.80
|
5.50
|
29.0
|
34
|
|
Size (mm)
|
Thickness (mm)
|
Length (m)
|
Wt / pc (kg)
|
Pcs / MT
|
Pcs / bundle
|
|---|---|---|---|---|---|
|
16 × 16
|
0.50
|
5.50
|
1.4
|
724
|
300
|
|
0.60
|
5.50
|
1.7
|
603
|
||
|
0.80
|
5.50
|
2.2
|
452
|
||
|
0.90
|
5.50
|
2.5
|
402
|
||
|
18 × 18
|
0.50
|
5.50
|
1.6
|
643
|
300
|
|
0.60
|
5.50
|
1.9
|
536
|
||
|
0.80
|
5.50
|
2.5
|
402
|
||
|
0.90
|
5.50
|
2.8
|
357
|
||
|
20 × 20
|
0.50
|
5.50
|
1.7
|
579
|
300
|
|
0.60
|
5.50
|
2.1
|
483
|
||
|
0.80
|
5.50
|
2.8
|
362
|
||
|
0.90
|
5.50
|
3.1
|
322
|
||
|
1.05
|
5.50
|
3.6
|
276
|
||
|
23 × 23
|
0.50
|
5.50
|
2.0
|
504
|
300
|
|
0.60
|
5.50
|
2.4
|
420
|
||
|
0.80
|
5.50
|
3.2
|
315
|
||
|
0.90
|
5.50
|
3.6
|
280
|
||
|
1.05
|
5.50
|
4.2
|
240
|
||
|
25 × 25
|
0.60
|
5.50
|
2.6
|
386
|
150
|
|
0.80
|
5.50
|
3.5
|
290
|
||
|
0.90
|
5.50
|
3.9
|
257
|
||
|
1.05
|
5.50
|
4.5
|
221
|
||
|
1.30
|
5.50
|
5.6
|
178
|
||
|
1.50
|
5.50
|
6.5
|
154
|
||
|
30 × 30
|
0.60
|
5.50
|
3.1
|
322
|
150
|
|
0.80
|
5.50
|
4.1
|
241
|
||
|
0.90
|
5.50
|
4.7
|
214
|
||
|
1.05
|
5.50
|
5.4
|
184
|
||
|
1.30
|
5.50
|
6.7
|
148
|
||
|
1.50
|
5.50
|
7.8
|
129
|
||
|
1.70
|
5.50
|
8.8
|
114
|
||
|
35 × 35
|
0.60
|
5.50
|
3.6
|
276
|
150
|
|
0.80
|
5.50
|
4.8
|
207
|
||
|
0.90
|
5.50
|
5.4
|
184
|
||
|
1.05
|
5.50
|
6.3
|
158
|
||
|
1.30
|
5.50
|
7.9
|
127
|
||
|
1.50
|
5.50
|
9.1
|
110
|
||
|
1.70
|
5.50
|
10.3
|
97
|
||
|
40 × 40
|
0.90
|
5.50
|
6.2
|
161
|
100
|
|
1.05
|
5.50
|
7.3
|
138
|
||
|
1.30
|
5.50
|
9.0
|
111
|
||
|
1.50
|
5.50
|
10.4
|
97
|
||
|
1.70
|
5.50
|
11.7
|
85
|
||
|
2.20
|
5.50
|
15.2
|
66
|
||
|
50 × 50
|
1.05
|
5.50
|
9.1
|
110
|
100
|
|
1.30
|
5.50
|
11.2
|
89
|
||
|
1.50
|
5.50
|
13.0
|
77
|
||
|
1.70
|
5.50
|
14.7
|
68
|
||
|
2.20
|
5.50
|
19.0
|
53
|
||
|
2.80
|
5.50
|
24.2
|
41
|
||
|
60 × 60
|
1.30
|
5.50
|
13.5
|
74
|
100
|
|
1.50
|
5.50
|
15.5
|
64
|
||
|
1.70
|
5.50
|
17.6
|
57
|
||
|
2.20
|
5.50
|
22.8
|
44
|
||
|
2.80
|
5.50
|
29.0
|
34
|
|
Size (mm)
|
Thickness (mm)
|
Length (m)
|
Wt / pc (kg)
|
Pcs / MT
|
Pcs / bundle
|
|---|---|---|---|---|---|
|
30 × 20
|
0.60
|
5.50
|
2.6
|
386
|
150
|
|
0.80
|
5.50
|
3.5
|
290
|
||
|
0.90
|
5.50
|
3.9
|
257
|
||
|
1.05
|
5.50
|
4.5
|
221
|
||
|
1.30
|
5.50
|
5.6
|
178
|
||
|
1.50
|
5.50
|
6.5
|
154
|
||
|
40 × 20
|
0.60
|
5.50
|
3.1
|
322
|
150
|
|
0.80
|
5.50
|
4.1
|
241
|
||
|
0.90
|
5.50
|
4.7
|
214
|
||
|
1.05
|
5.50
|
5.4
|
184
|
||
|
1.30
|
5.50
|
6.7
|
148
|
||
|
1.50
|
5.50
|
7.8
|
129
|
||
|
1.70
|
5.50
|
8.8
|
114
|
||
|
40 × 27
|
0.90
|
5.50
|
5.2
|
192
|
150
|
|
1.05
|
5.50
|
6.1
|
165
|
||
|
1.30
|
5.50
|
7.5
|
133
|
||
|
1.50
|
5.50
|
8.7
|
115
|
||
|
1.70
|
5.50
|
9.8
|
102
|
||
|
50 × 25
|
0.90
|
5.50
|
5.9
|
168
|
150
|
|
1.05
|
5.50
|
6.9
|
144
|
||
|
1.30
|
5.50
|
8.6
|
116
|
||
|
1.50
|
5.50
|
9.9
|
101
|
||
|
1.70
|
5.50
|
11.2
|
89
|
||
|
2.20
|
5.50
|
14.5
|
69
|
||
|
60 × 40
|
1.05
|
5.50
|
9.1
|
110
|
100
|
|
1.30
|
5.50
|
11.2
|
89
|
||
|
1.50
|
5.50
|
13.0
|
77
|
||
|
1.70
|
5.50
|
14.7
|
68
|
||
|
2.20
|
5.50
|
19.0
|
53
|
||
|
2.80
|
5.50
|
24.2
|
41
|
||
|
80 × 40
|
1.30
|
5.50
|
13.5
|
74
|
84
|
|
1.50
|
5.50
|
15.5
|
64
|
||
|
1.70
|
5.50
|
17.6
|
57
|
||
|
2.20
|
5.50
|
22.8
|
44
|
||
|
2.80
|
5.50
|
29.0
|
34
|
Mild steel & galvanised steel · standard length 5.50 m · weights are nominal
Applications

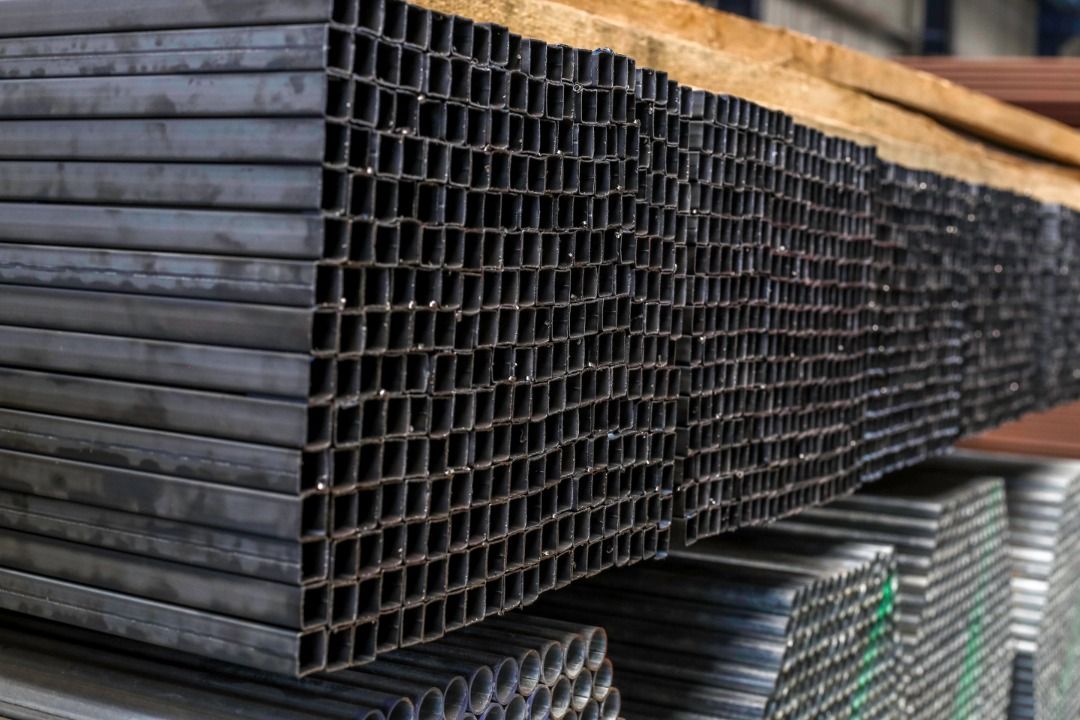

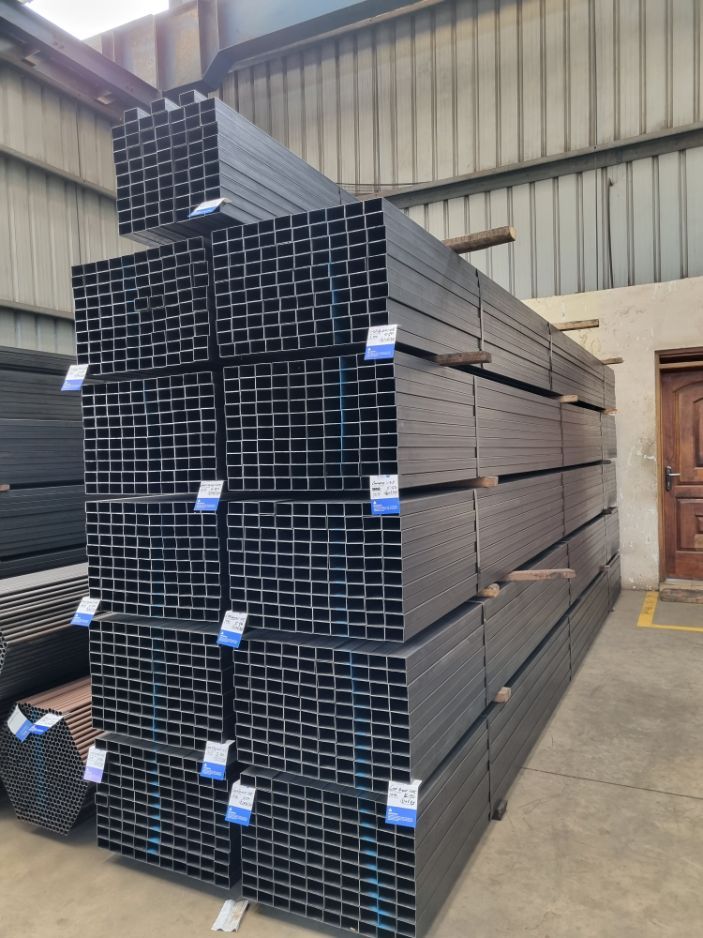

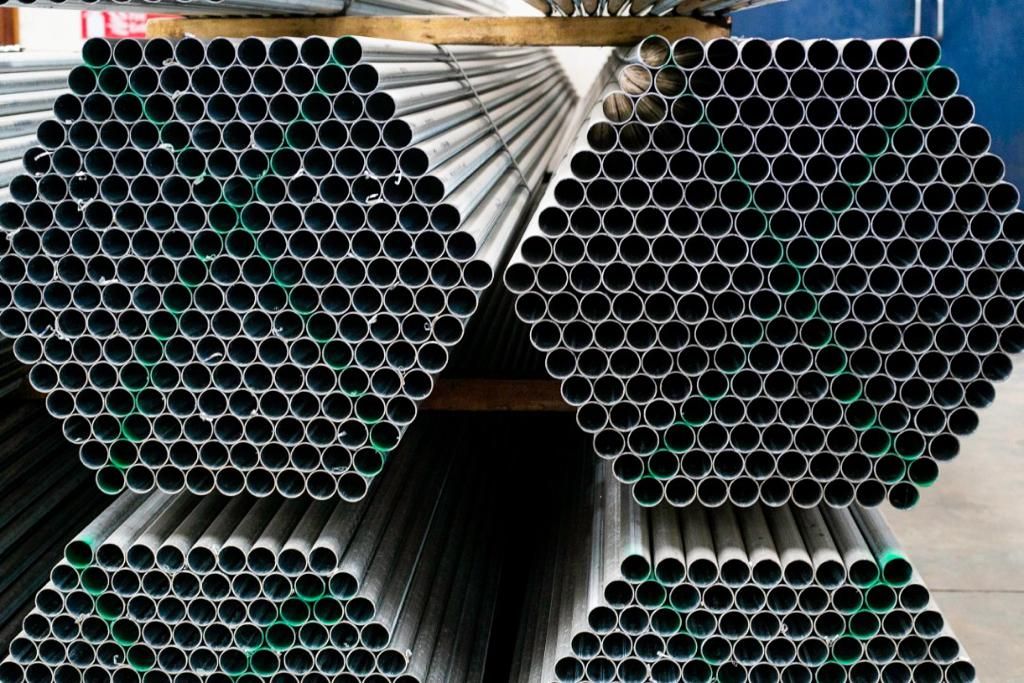

Finished tubes are strapped in bundles for stability when stacking or loading into any mode of transport.
Why galvanised
Zinc protection that keeps working long after delivery — with no maintenance.
Lower initial cost than most treated steels — and ready to use when delivered. No extra surface preparation, inspections or painting, sparing you further costs.
Galvanised industrial steel is expected to last more than 50 years in average environments, and over 20 years with severe water exposure. No maintenance is required, and the increased durability raises the reliability of the finished product.
Any damaged steel is protected by the surrounding zinc coating. Even if a section is completely exposed, the zinc corrodes first — sacrificially protecting the damaged area.
Zinc acts as a protective buffer between the steel and moisture or oxygen — including sharp corners and recesses that other coatings can’t protect.
